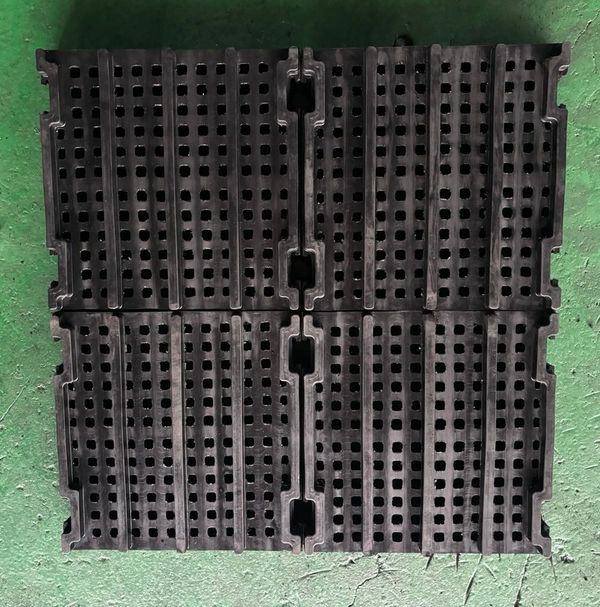

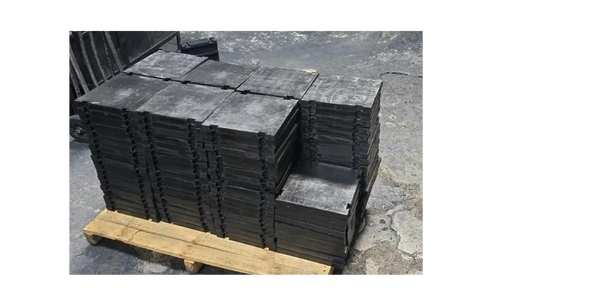

Rubber Panels
Key Features
- Extended Wear Life - Rubber resists abrasion and heavy impact, lasting up to 3x longer than conventional wire mesh.
- Noise Reduction - Vibration-absorbing rubber lowers operating noise, enhancing workplace safety.
- Fast Changeouts – Modular panels allow replacements in minutes, not hours, reducing downtime.
- Versatile Apertures – Square, round, and slotted openings from 0.5 mm up to 150 mm.
- Safety & Handling – Lightweight modular design makes installation safe and efficient.
Customer Benefits
- Reduced Costs - Longer panel life & less downtime, lower operating costs.
- Improved Productivity - Consistent screening efficiency, even in wet or sticky applications.
- Operator Comfort - Noise levels reduced by up to 50%.
- Flexibility - Panels can be customized to fit any screen deck.
Technical Specifications
- Panel Sizes: 300×300 mm, 305×610 mm, 610×610 mm (custom sizes on request).
- Thickness: 30–75 mm (application dependent).
- Aperture Types: Square, round, slotted, ripple/wave.

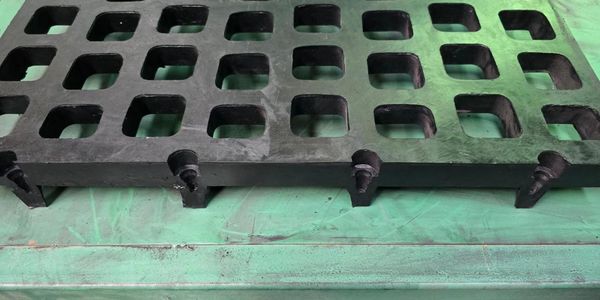

- Fixing Systems: Pin & sleeve, snap-on, clamp, or bolt-on.
- Material Hardness: 40–90 Shore A rubber compounds.
- Applications: Mining, quarrying, aggregates, recycling, coal, iron ore, manganese, chrome, gold, copper, diamonds.
