Liners
Key Benefits
- Extended Wear Life – Rubber, composite, and steel-reinforced liners withstand high impact and abrasion.
- Noise Reduction – Rubber properties dampen vibration, cutting operating noise and improving workplace safety.
- Optimized Design – Lifter bars and grate plates shaped for improved charge trajectory and reduced blinding.
- Lightweight & Safer Handling – Rubber and composites reduce liner weight, simplifying installation and lowering torque at startup.
Customer Benefits
- Reduced Costs – Longer liner life and faster relines lower overall lifecycle costs.
- Improved Productivity – Optimized flow prevents pegging and blinding, increasing throughput.
- Operator Comfort – Noise levels significantly reduced compared to steel-only liners.
- Flexibility – Wide range of materials and designs, fully customizable to your mill or plant requirements.
Technical Specifications

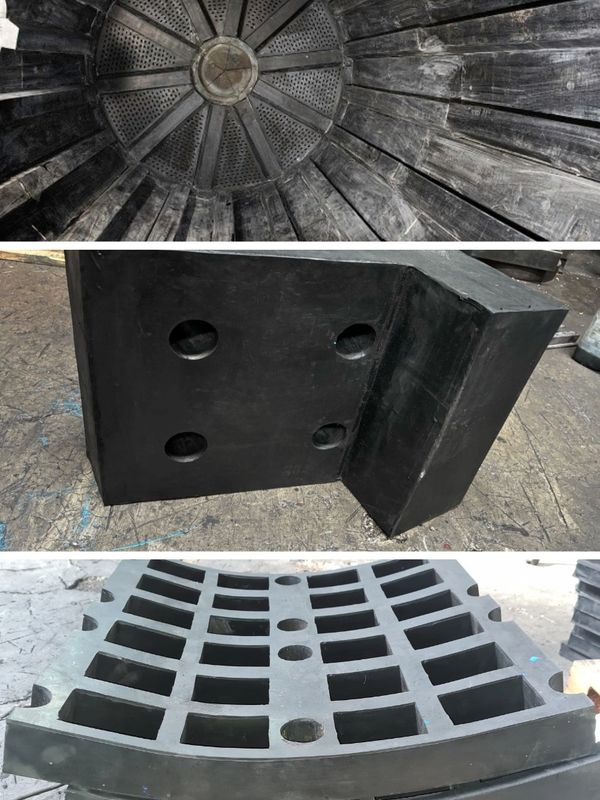

- Liner Types: Mill liners (ball, SAG, AG), scrubber liners, pulp lifters, grate plates, head & shell plates, trunnion liners.
- Material Options: Rubber, polyurethane, ceramic-rubber hybrids.
- Thickness Range: 40 mm – 120 mm (application specific).
- Hardness: 40–90 Shore A compounds available.
- Fixing Systems: Bolt-on, magnetic (for wear liners), or steel-backed systems.
- Applications: Gold, copper, iron ore, coal, chrome, manganese, diamonds, and general mineral processing.
